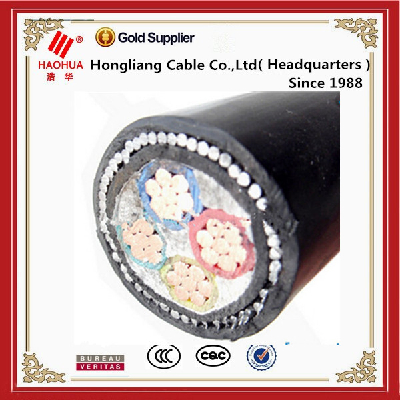

0.6/1kv low voltage 3 cores armor cable steel wire armored PVC insulated cable
Rated Voltage 6kV and 30kV power cable (XLPE insulated),6kV-30kV
Cross-sectional area : single core,three-core 25-630mm2
Copper ,aluminum conductor, metal tape armoured,wire armoured.
Rated Voltage 30kV power cable (XLPE insulated), 21/35kV,26/35kV,
Cross-sectional area : single core,three-core 25-630mm2
Power cable Structure
The basic structure of power cables by the core (conductor), an insulating layer, a shielding layer and a protective layer of four parts.
1. The core is conductive part of power cable, which is used to transfer power, is the main part of the power cable.
2. Insulation is the line between the core and the earth and the different phase of wire core in the electrical insulated from each other, is an indispensable part in the structure of power cable.
3. Shield 10KV power cable shielding layer and more generally have a conductor shielding layer and an insulating shielding layer.
4. Protective layer The role of the protective layer is to protect the power cable from the outside world the invasion of the impurities and moisture, and prevent the external force directly damage the power cable.
Specifications:
Type | Core | Rated voltage(kV) |
Copper | Aluminum | 0.6/1 | 3.6/6 | 6/6
6/10 | 8.7/10
8.7/15 | 12/20 | 18/20
18/30 | 21/35 | 26/35 |
YJV
YJY | YJLV
YJLY | 1 | 1.5~400 | 25~500 | 25~500 | 25~500 | 35~500 | 50~500 | 50~500 | 50~500 |
3 | 1.5~300 | 25~300 | 25~300 | 25~300 | 35~300 | 50~300 | 50~300 | 50~300 |
2 | 1.5~150 | - | - | - | - | - | - | - |
3 1 | 4~400 | - | - | - | - | - | - | - |
3 2,4 1 | 50~240 | - | - | - | - | - | - | - |
5 | 1.5~35 | - | - | - | - | - | - | - |
YJV22
YJV23 | YJLV22
YJLV23 | 1 | 4~400 | 25~500 | 25~500 | 25~500 | 35~500 | 50~500 | 50~500 | 50~500 |
3 | 2.5~300 | 25~300 | 25~300 | 25~300 | 35~300 | 50~300 | 50~300 | 50~300 |
2 | 4~150 | - | - | - | - | - | - | - |
3 1 | 4~300 | - | - | - | - | - | - | - |
3 2,4 1 | 50~240 | - | - | - | - | - | - | - |
5 | 2.5~35 | - | - | - | - | - | - | - |
Note: We can produce steel-armored wire according to user needs, such as: YJV32, YJLV32 type; the flame retardant cable should plus “ZR” in front of the original model when ordering.
