Quick Details
Place of Origin: Shandong, China (Mainland)
Brand Name: Hao Hua
Model Number: YJV22
Insulation Material: PVC
Type: Medium Voltage
Application: Power transmission
Conductor Material: Copper
Jacket: PVC

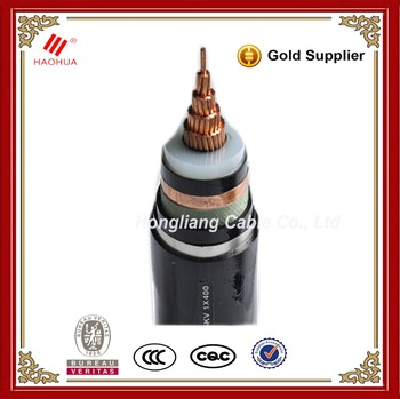

Product: Hongliang XLPE power cable 500mcm
Standard: ASTM BS IEC 60502, BS 7870, GB/T12706
Certificates: CQC ISO CCC
Cores: 1C and 3C
Rated voltage: 1.8/3kV~ 26/35KV
Range of nominal cross section:1.5~630mm
Armored type: SWA/STA
Free samples: available
Features: flame retardant fire resistance
Contact method: 86 185 6005 9875
Packaging & Delivery
| Packaging Details: | Steel /wooden drum for Hebie Hongliang XLPE insulated power cable 500mcm XLPE cable or as per your requirement |
|---|
| Delivery Detail: | Within 5~7 working days |
|---|
Types and Applications for Hebie Hongliang XLPE insulated power cable 500mcm XLPE cable
Type | Designation | Applications |
YJV YJLV | Copper conductor XLPE insulated PVC sheathed power cable Aluminum conductor XLPE insulated PVC sheathed power cable | For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not permissible to lay in magnetic duct. |
YJY YJLY | Copper conductor XLPE insulated PE sheathed power cable Aluminum conductor XLPE insulated PE sheathed power cable |
YJV22 YJLV22 | Copper conductor XLPE insulated steel tape armoured PVC sheathed power cable Aluminum conductor XLPE insulated steel tape armoured PVC sheathed power cable | For laying indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
YJV23 YJLV23 | Copper conductor XLPE insulated, steel tape armoured PE sheathed power cable Aluminum conductor XLPE insulated steel tape armoured, PE sheathed power cable |
Technical dates for Hebie Hongliang XLPE insulated power cable 500mcm XLPE cable
Voltage rating: 1.8/3KV~26/35KV
Standard applied: IEC60502, BS7889, GB/T12706
Max. working temp.: 90°C, can be 110°C as per requirement
Max. Short-circuit temperature of the conductor shall not be exceeding 250°C (Max. sustaing period not exceeding 5S)
Conductor: Class 1/2 annealed bare copper solid or strands
Insulation: XLPE (cross linked Polyethylene)
Outer sheath: PVC
Cores: 1C, 2C, 3C,4C,5C, 3C 1E,4C 1E,3C 2E
Cross section area: 1.5 ~ 630 sqmm
Color: Black or as per requirement
Bending radius: Not less than 15 times of the cable's OD
Test voltage: 3.5kV/5min
Packing: Wooden drum or as per requirement
Certification: ISO9001/ISO14001/OHSMS18001/CE/CB/CCC/SAA
OEM: Available
Hongliang cables has very good sales over the world, enjoying a very good reputation based on top quality and most competitive price and best service.
Remark: The cable can be of flame retardance, fire resistance and environment friendly or other property
Quality Control systems for Hebie Hongliang XLPE insulated power cable 500mcm XLPE cable
Sparker tester,Heating aging Chamber,High resistance machine, Oxygen index equipment, Partial ischarge inspection instruments, Fireproof testing device,High-power voltage withstand tester,No-rotor Vulkameter,Pull tester,Analytical balance,Direct current bridge,Plastic tester,Projector, Punch machine,Cross-linked cutting machine,etc.
Packaging & Shipping
Packing:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, Qingdao, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
FAQ
Frequently Asked Questions:
Q 1: I didn’t find my needed cable in this page.
Answer: Dear Friend, Kindly check our catalog. Also, we supply customization service. So, contact us ! :)
Q 2: What’s your Minimum Order Quantity?
Answer: Normally, 100m for small wires. 200m for unarmoured cable. 500m for armoured cable. 1000m for power cable above 69kV.
Q 3: When can i get the price and what’s the validity?
Answer: For standard types and small orders, it take less than 24 hours. For big quantity and plenty types, it takes less than 48 hours. Validity is 7 days or as per LME price for tenders and big orders.
Q 4: What’s your payment terms?
Answer: By T/T 30% in advance ; Balance 70% before shipment. Or LC at sight. Now you can pay through Alibaba company to our Alibaba sub-account.
Q 5: What’s your delivery time?
Answer: It depends on whether we just has the stock for your type. Or, it takes about 10 - 30 days for normal orders.
Q 6: How is your quality guarantee?
Answer: It will be stated along with our quotation sheet.
Q 7: What’s your package method?
Answer: Usually, it’s cable reel for wires. Wooden drums for small size cables and steel drums for big size cables.
Anyway, all are exporting package to assure no damage in the transportation process.
