Place of Origin: Hebei, China (Mainland)
Brand Name: Hao Hua
Model Number: YJLW02 1*500
Insulation Material: XLPE
Type: High Voltage, copper/XLPE/Coriugated Aluminium sheath/PVC
Application: Underground
Conductor Material: Copper
Jacket: PVC

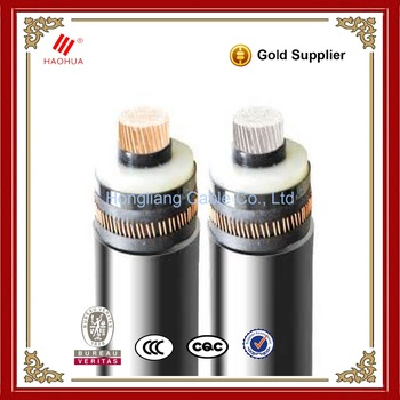

Product: Transmission Line 132kV High Voltage XLPE Power Cables specifications
Certificate: ISO9001/ISO14001 /OHSAS18001/CCC
Standard: BS IEC ASTM DIN
Color: Black or OEM
Core: Single Core
Packing: steel drum
Sample: free
Underground Transmission Line 132kV High Voltage XLPE Power Cables specifications Product Description Product details: Description: copper/XLPE/Coriugated Aluminium sheath/PVC Chinese code:YJLW02 66~500 kV XLPE Insulated power cable XLPE power cable 66~500 kV Standard: 1) IEC 60060:2010 High Voltage Testing Technology; Or equivalent DIN, BS, AS/NZS, JIS, ASTM, IS, etc. standard. Additional Options: Flame retardant, Anti-termite. Package: Steel Drum Packaging & Delivery
Packaging Details: Steel /wooden drum for for Underground Transmission Line 132kV High Voltage XLPE Power Cables specifications or as per your requirement Delivery Detail: Shipped in 15 days after payment
2) IEC 60228:2004 Insulated Cable Conductor;
3) IEC 60229:2007 Test on Extruded Cable Sheath With Special Protective Function;
4) IEC 60230:1966 Impact Test on Cable and Cable
5) IEC 60071:2006 Insulation Co-ordination;
6) IEC 60287:2006 Rated Continuous Current Calculation of Cable;
7) IEC 60811:2001 Non-electrical Test & Material Test;
8) IEC 60859:1999 Jointing of Cable and GIS with Rated Voltage of 72.5kV and Above;
9) IEC 60949:2008 calculation of permissible short circuit thermal stability current considering the effect of non-insulated heat;
10) IEC 60885:1988 Electrical Test Methods for Power Cable;
11) IEC 60183:1990 High Voltage Cable Select Guide;
12) IEC 62067:2006 Extruded Insulated Power Cable
Technical details:
Conductor: Conductor cross section of 800mm2 or below is stranded through compacting round core, with better roundness and higher compacting coefficient. Conductor cross section more than 800mm2 is made by segment of Milliken method to minimize skin connecting and alternating current impedance and increase power transmission capacity of cable
Insulation: XLPE, gravity feeding in 1000 level ultra-clean environment.
Product line: VCV
Metallic screen/sheath: Option 1) Welded corrugated aluminum sheath
Option 2) Extruded Corrugated aluminum sheath
Option 3) Copper wire poly laminated sheath
Outer sheath: PVC, MDPE, HDPE, LDPE
Characteristic of use:
Allowable max. long-time operation temperature of cable conductor: 90°C
Allowable Max. short circuit temperature of cable conductor (max. sustaining period not exceeding 5s): 250 °C
Allowable Min. bending radius when laying cable, generally 20 times of the cable diameter
Main Cross sections for 66~500kV Power Cable:
400mm2, 500mm2, 630mm2, 800mm2, 1000mm2, 1200mm2, 1400mm2, 1600mm2, 1800mm2, 2000mm2, 2500mm2
Packaging & Shipping
Packing:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, Qingdao, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
